Multilayer Stack Piezoelectric Ceramics: The Perfect Fusion of Material Science and High-End Applications

Multilayer Stack Piezoelectric Ceramics: The Perfect Fusion of Material Science and High-End Applications

In the fields of precision actuation, sensing, and energy conversion, piezoelectric ceramic materials have always played a central role. As industries such as industrial automation, medical devices, and aerospace continue to demand higher performance from components, traditional single-layer piezoelectric ceramics struggle to meet requirements for miniaturization, high precision, and large driving forces. Multilayer stack piezoelectric ceramics, through deep integration of material innovation and structural design, are redefining industry standards and becoming the "precision heart" of modern high-end equipment.

I. Material Breakthroughs: From Foundational Performance to Structural Innovation

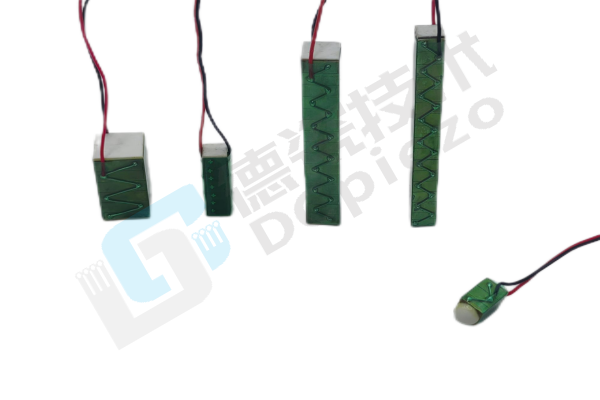

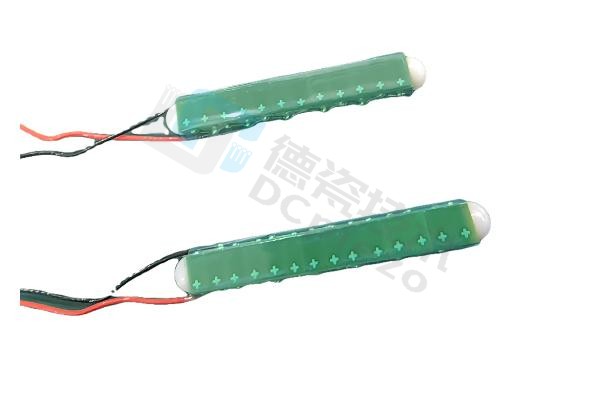

The core of multilayer stack technology lies in alternating ultra-thin piezoelectric ceramic layers (ranging from dozens to hundreds) with internal electrodes through precision lamination processes, forming a compact composite structure. Compared to traditional single-layer devices, its advantages are significant:

● Drive Efficiency Multiplication: Stacked design enables 5-10x displacement increase under the same voltage, with microsecond-level response speed

● Energy Density Leap: Force output per unit volume triples compared to traditional structures

● Low-Voltage Operation: Working voltage reduced to below 150V, significantly enhancing system safety

● Miniaturization Breakthrough: Achieves millimeter-level displacement output within a 5mm³ volume

Our proprietary nanoscale powder dispersion technology and optimized co-firing processes resolve interlayer stress matching and interface defect challenges, delivering product lifespans exceeding 10⁹ cycles and meeting industrial-grade reliability standards.

II. Vertical Applications: Empowering High-End Equipment Advancements

Precision Manufacturing

● Nano-level focusing systems for semiconductor lithography machines

● High-precision dispensing equipment for microelectronic packaging

● Dynamic compensation mechanisms for ultra-precision machine tools

Medical Technology

● Core driving components for ultrasound medical probes

● Joint actuators for minimally invasive surgical robots

● Precision drug micro-atomization delivery systems

Aerospace

● Laser beam steering for satellite communications

● Active vibration control systems for aircraft noise reduction

● Flexible joint modules for space station robotic arms

Emerging Technologies

● Fuel injection valve control units for new energy vehicles

● Haptic feedback modules for smart wearable devices

● Cryogenic environment actuators for quantum computing equipment

III. Intelligent Manufacturing Capabilities: Full-Chain Technological Mastery

As one of the few domestic enterprises achieving full-process autonomy from raw materials to design, production, and testing, we have built three core competitive barriers:

● Material-Level Innovation: PZT-based ceramic formulations with 99.98% purity, operable across -196°C to 250°C

● Process Breakthroughs: Mastery of 2μm ultra-thin tape casting and 0.1mm precision dicing technologies

● Smart Testing: Equipped with laser interferometers and impedance analyzers for nanometer-level displacement resolution

Through our modular design platform, we provide:

✅ Standard product fast delivery (lead time ≤15 days)

✅ Customized development (OEM/ODM supported)

✅ Application scenario simulation optimization services

IV. Future-Oriented: Growing with Industry

Amid Industry 4.0 and smart equipment trends, we continuously invest in:

● Developing 0.5mm ultra-miniature stack devices

● Researching lead-free eco-friendly piezoelectric materials

● Building AI-driven process optimization platforms

Choosing us means selecting not just products, but also:

◆ 20 years of expertise in piezoelectric ceramics

◆ 200+ core patented technologies

◆ Proven experience serving high-end clients across 30 countries

Let’s collaborate to drive a precise future through material innovation!
