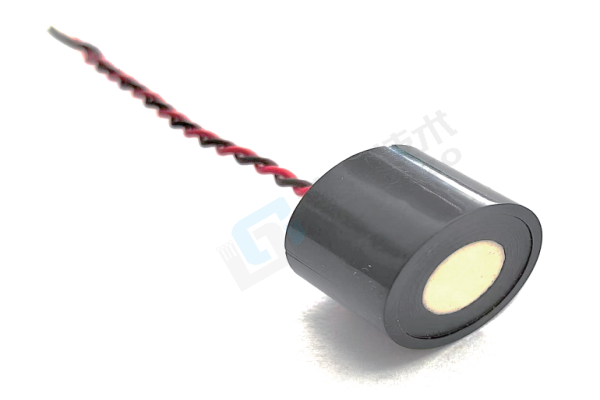

DC-SG-300kPS High Sensitivity
A high-sensitivity ultrasonic gas transducer designed for floor-cleaning robots and smart devices, focusing on precise material identification and wide dynamic ranging. Features a PC plastic housing and glass-reinforced epoxy acoustic window, operating at 290kHz (±10%) with a 2cm–4m ranging capability. Echo sensitivity >1.2Vpp (5cm distance) and a 9°±3° narrow beam angle enable accurate differentiation of surface characteristics (e.g., carpet, tile), meeting stringent consumer electronics durability standards. Twisted-pair shielded design suppresses EMI, weighs only 2g, and integrates seamlessly into smart devices, delivering reliable non-contact sensing for obstacle avoidance, material recognition, and automation.
DC-SG-300kPS High Sensitivity
DC-SG-300kPS High Sensitivity
With high-sensitivity material identification, EMI-resistant twisted-pair design, and consumer-grade reliability, this transducer provides precise ultrasonic solutions for floor-cleaning robots, smart home systems, and micro-automation, ensuring efficient performance and durability in complex environments.
Structural Design
● Narrow Beam Focusing: 9°±3° transmission beam angle enhances ranging accuracy and material resolution while minimizing environmental interference.
● Twisted-Pair EMI Resistance: Dual-core shielded cable with twisted structure reduces electromagnetic noise for clean signal transmission.
● Ultra-Lightweight Packaging: PC housing and miniaturized circuitry (2g weight) suit space-constrained consumer electronics.
● Post-Vibration Suppression: Post-vibration voltage <100mVpp (@150μs) shortens signal recovery time and improves algorithm efficiency.
Material Properties
● Durable PC Housing: High-strength engineering plastic resists impacts and chemicals, passing consumer electronics reliability tests for extended lifespan.
● High-Transmission Acoustic Window: Glass-reinforced epoxy window resists contamination and wear, maintaining signal consistency.
● Low-Loss Piezoelectric Ceramic: Static capacitance 1300pF (±15%), resistance <500Ω @290kHz, enabling efficient high-frequency transmission with low power consumption.
Core Advantages
● High-Sensitivity Material Identification:
(1) Sensitivity >1.2Vpp (140Vpp drive, 50dB gain) for precise differentiation of surfaces (e.g., carpet vs. hard flooring).
(2) Bandwidth >15% (@-6dB) ensures rapid dynamic response in real-time detection scenarios.
● Strong EMI Immunity: Twisted-pair shielding with 200MΩ insulation resistance (@100V DC) suppresses interference in complex electromagnetic environments.
● Consumer-Grade Reliability: Operational range -10°C to +60°C, tested for vibration and drop resistance, ideal for high-frequency use in floor-cleaning robots.
Typical Applications
● Floor-Cleaning Robots: Carpet identification, step-edge detection, obstacle avoidance, and narrow-space navigation.
● Smart Home Systems: Automatic trash can activation, smart lighting triggers, and security intrusion detection.
● Industrial Automation: Micro-AGV path planning, proximity sensing in production lines, and precision liquid level monitoring.
● Consumer Electronics: Educational robot interaction, drone obstacle avoidance, and smart toy engagement.
Core Guarantees
● Full-Process Quality Control: Ensures performance consistency from piezoelectric ceramic sintering to final aging tests.
● Customization Services: Adjustable frequency, cable length, and interface configurations for specialized needs.
● Worry-Free Support: Technical selection guidance, installation assistance, and lifetime maintenance response for rapid deployment.
