Ultrasonic Focused Transducer
A high-performance acoustic driving device based on piezoelectric ceramic technology, converting high-frequency electrical energy into high-intensity focused ultrasound (HIFU) for targeted energy delivery through precise electro-acoustic energy conversion and focusing. Its core function is to generate controlled acoustic pressure pulses that produce high-energy shockwaves or thermal effects in specific focal zones, widely used in medical therapy, industrial inspection, and scientific research, particularly excelling in non-invasive treatments (e.g., lithotripsy, pain management).
Ultrasonic Focused Transducer
Ultrasonic Focused Transducer
Empowering precision energy control in medical and industrial fields with cutting-edge piezoelectric technology and modular design, this transducer delivers reliable core power for efficient therapies and high-accuracy detection!
Structural Design

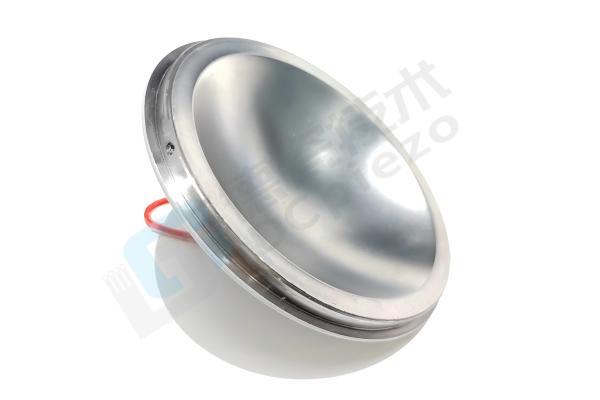

● Concave Array Arrangement: Piezoelectric ceramic elements are aligned in precise geometric arrays on a concave substrate to synchronize acoustic phase superposition, achieving efficient energy focusing.
● High-Voltage Pulse Drive: Supports instantaneous 5000V pulse input, activating micron-level deformation of piezoelectric elements to generate high-intensity acoustic pressure waves.
● Multi-Layer Protection: Waterproof and EMI-resistant housing with integrated impedance matching layers and thermal management ensures long-term stability under high-frequency/high-voltage operation.

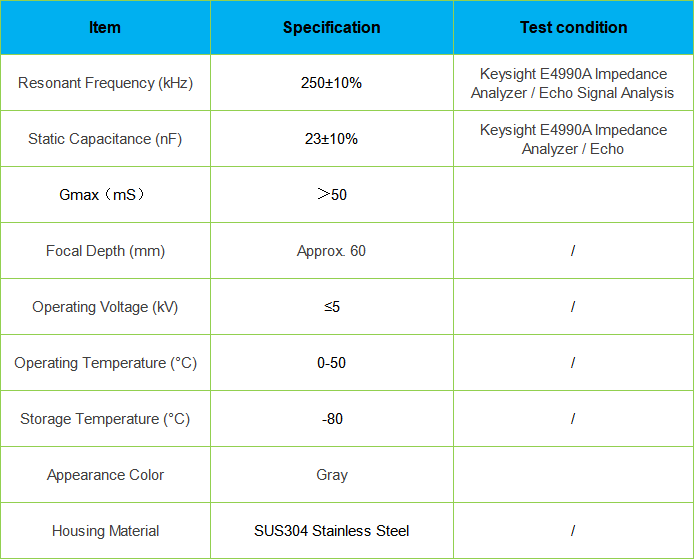

Material Properties
● High-Voltage Piezoelectric Ceramic: Features high Curie temperature (>300°C) and low dielectric loss, enduring ultra-high electric field pulses with a lifespan exceeding 10 million cycles.
● Broadband Response: Operates at 0.5MHz–5MHz, adaptable to diverse acoustic frequency requirements.
● High Electromechanical Efficiency: Electromechanical coupling coefficient (kt) ≥0.6, energy conversion efficiency >85%, focal acoustic pressure intensity up to 60–80MPa.
Core Advantages
● Precise Energy Focusing: Focal position error <0.5mm, customizable focal spot shape (circular/elliptical) and depth (5mm–150mm) for tailored therapeutic needs.
● Ultra-High Reliability: <3% performance degradation after million-cycle pulse testing, ensuring long-term stability in clinical/industrial environments.
● Flexible Customization: Supports transducer size, frequency, and acoustic pressure customization for rapid integration with client systems.
Typical Applications
● Medical Lithotripsy: Extracorporeal shock wave lithotripsy (ESWL) for kidney/ureteral stones, enabling non-invasive precision treatment.
● Orthopedics & Rehabilitation: Chronic musculoskeletal pain therapy, soft tissue repair, and fracture healing.
● Urology: Low-intensity shockwave therapy (Li-ESWT) for vasculogenic erectile dysfunction (ED).
● Industrial NDT: High-frequency focused ultrasound for micron-level defect detection and thickness measurement in materials.
Core Guarantees
● Full-Process QC: Ensures performance consistency via laser vibrometers and hydrophones for focal field validation during ceramic sintering, electrode coating, and assembly.
● Custom Development: Acoustic simulation design, impedance matching optimization, and rapid prototyping to shorten R&D cycles.
● Lifecycle Support: Installation calibration, parameter tuning, and clinical/industrial application guidance to maximize end-user outcomes.
