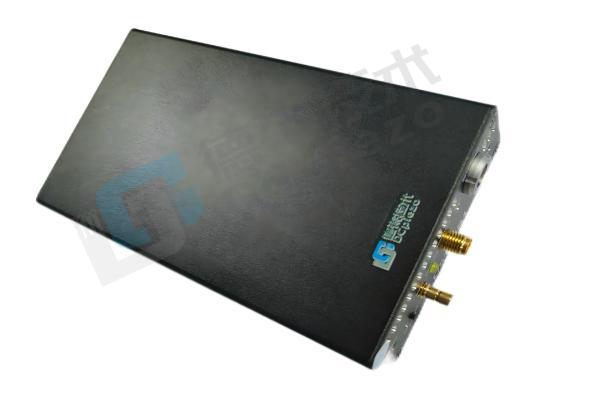

Piezoelectric Controller DC-C51.MS1
A single-channel compact closed-loop servo controller designed for high-precision piezoelectric ceramic actuation, supporting SGS sensor feedback for precision positioning, dynamic adjustment, and micro-displacement control. Operating at 20V–30V input, it delivers 0–120V (default) or 0–150V (optional) output with 0.5A peak current, 10kHz no-load bandwidth, and 16-bit high-resolution signal chain, achieving sub-micron control accuracy. Built-in multi-protection mechanisms (short-circuit/thermal protection) and low-power design (<5W standby) ensure dynamic response and long-term stability, ideal for industrial automation, optical instruments, and scientific research.
Piezoelectric Controller DC-C51.MS1
DC-C51.MS1 Piezoelectric Controller
A core solution for precision actuation with closed-loop control, modularity, and robust safety features. Designed for stability, speed, and customization, it empowers industrial automation and scientific innovation in demanding scenarios.
Structural Design
● Compact Integration: Dimensions 123×75×29mm³, weight 0.3kg, optimized for embedded systems in space-constrained environments.
● Professional Interfaces: SMB control input, SMA sensor output, LEMO PZT connector, and multi-protocol communication (USB/RS422/RS232 via DB9 and MicroUSB ports).
● Thermal Management: Optimized circuit layout and heat dissipation for stable operation at 0–50°C.
Material Properties
● High-Precision Electronics: 32-bit 168MHz processor and dual 16-bit AD/DA converters ensure real-time signal processing.
● EMI-Shielded Housing: Aluminum alloy casing with electromagnetic shielding and mechanical durability for harsh industrial environments.
● Low-Ripple Output: 10mVpp ripple under 2.2μF capacitive load, minimizing interference with sensitive devices.
Core Advantages
● Closed-Loop Servo Control: Analog P-I + band-stop + low-pass algorithm with SGS feedback for dynamic disturbance suppression and stability.
● Flexible Output: Customizable 12x gain (0–120V) or 15x gain (0–150V) to match diverse load requirements.
● Multi-Protection: Short-circuit current limiting, real-time overcurrent LED alerts, and thermal shutdown for system safety.
Typical Applications
● Precision Positioning: Piezoelectric nano-positioning stages, dynamic lens focusing.
● Vibration Suppression: Optical stabilization platforms, active damping for precision instruments.
● Industrial Automation: Semiconductor packaging, MEMS actuation.
● Scientific Research: Scanning probe microscope (SPM) tip control, material property testing.
Quality Commitment
● Full-Process QC: Industrial-grade reliability validated via component screening and aging tests.
● Customization: Tailored output ranges, communication protocols, and interface types for specialized needs.
● 360° Support: Hardware debugging guidance, servo algorithm optimization, and system integration solutions across pre- to post-sales cycles.
