Piezo Controller DC-C52.MS4

DC-C52.MS4

With multi-channel parallel control, industrial-grade protection, and flexible customization, this controller is the ideal solution for multi-axis piezoelectric systems requiring synchronization, stability, and scalability, delivering robust technical assurance for precision engineering.

Structural Design

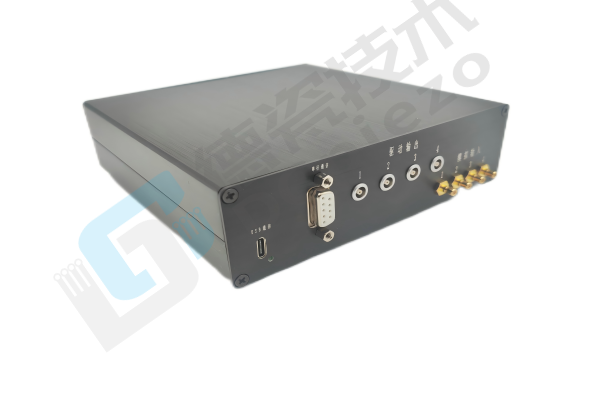

● Compact Multi-Channel Layout: Dimensions 152×153×44mm (excluding connectors), weight 0.7kg, supports 4-channel independent/synchronized control for high-density integration.

● Industrial-Grade Interfaces: 4× LEMO outputs, SMB control inputs, USB Type-C, and RS422 (DB9) communication, compatible with industrial protocols.

● Smart Thermal Management: Temperature-controlled fan and optimized airflow ensure stable operation at 0–50°C without thermal throttling.

Material Properties

● High-Speed Electronics: 32-bit processor and dual 16-bit AD/DA converters enable parallel multi-channel processing with <1μs latency.

● EMI-Resistant Construction: Aluminum housing with internal shielding minimizes crosstalk (SNR >90dB).

● Ultra-Low Ripple Output: ≤10mVRMS ripple with 2.2μF capacitive load for noise-sensitive devices.

Core Advantages

● Multi-Channel Synchronization: Independent or synchronized channel programming for multi-DOF stages and optical array focusing.

● High-Resolution Signal Chain: 16-bit D/A and A/D conversion with 10KHz bandwidth achieve 0.001% linearity and submicron dynamic accuracy.

● Multi-Layer Protection: Per-channel current limiting (60mA), thermal throttling, and adaptive fan control enhance safety and longevity.

● Flexible Output Modes: 12× gain (0–120V) or 15× gain (0–150V) customization for diverse piezoelectric ceramic drives.

Typical Applications

● Multi-Axis Positioning: Piezo nano-positioning stages, 6-DOF micro-motion systems.

● Optical Focusing: Multi-channel lens dynamic focusing, adaptive optics correction.

● Industrial Automation: Semiconductor wafer alignment, MEMS sensor array excitation.

● Scientific Research: SEM sample stage control, ultra-precision vibration simulation.

Core Guarantees

● Full-Process QC: Component screening and 72-hour aging tests ensure industrial reliability (MTBF ≥50,000 hours).

● Customization Services: Protocol expansion, channel count (2/4/6), and gain configuration for non-standard requirements.

● Lifecycle Support: Multi-channel debugging guides, system integration solutions, and rapid after-sales service response for efficient deployment.
