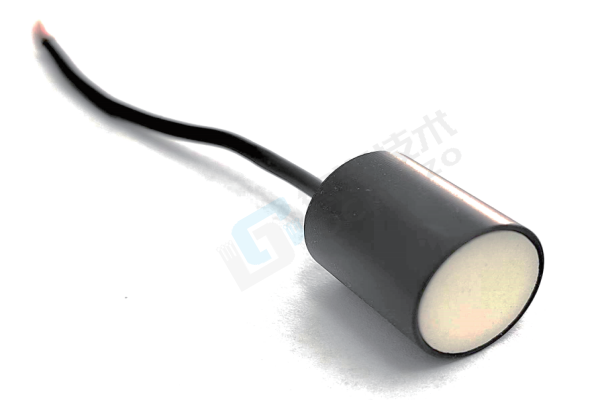

DC-SG-200KPO

DC-SG-200KPO

With open acoustic window design, high sensitivity, and wide bandwidth, this transducer provides accurate solutions for gas metering, industrial automation, and harsh environment monitoring, enabling efficient long-term operation in demanding scenarios.

Structural Design

● Open Acoustic Window: Glass-reinforced epoxy window design enhances signal efficiency for high-sensitivity detection in complex media.

● Lightweight Sealed Structure: PC housing with laser welding (9g weight) achieves IP68 protection against dust, water, and chemical corrosion.

● Wide Beam Coverage: 11°±2° transmission beam angle balances focus precision and detection range for dynamic applications.

● Easy Lead Integration: Dual-core shielded cable resists interference and supports rapid installation.

Material Properties

● Corrosion-Resistant PC Housing: High-strength engineering plastic withstands acids, alkalis, and gases for extended lifespan.

● High-Transparency Acoustic Window: Glass-reinforced epoxy window resists contamination and wear, ensuring signal consistency.

● Low-Temperature Stable Piezoelectric Ceramic: Static capacitance 650pF (±20%), minimal sensitivity drift across -30°C to +70°C, low-temperature noise <0.5ns.

Core Advantages

● High Sensitivity & Wide Bandwidth:

(1) Echo voltage >-49dB (6cm distance) for superior weak signal capture.

(2) Bandwidth >30kHz (@-6dB) enables fast dynamic response in high-speed detection.

● Robust Environmental Adaptability: Tolerates 2MPa pressure, -30°C low temperatures, and chemical corrosion; storage range -40°C to +90°C.

● High Drive Compatibility: Supports 500Vpp high-voltage drive and minimal parallel resistance 200Ω (±30%) for quick circuit integration.

Typical Applications

● Industrial Gas Metering: High-pressure gas pipeline flow monitoring, corrosion-resistant for sulfur-containing gases.

● Precision Liquid Level Detection: Non-contact monitoring for chemical tanks and oil containers, contamination-resistant window ensures long-term stability.

● Automation & Robotics: AGV navigation, industrial robot obstacle avoidance, and proximity sensing in production lines.

● Smart Security Systems: Outdoor intrusion detection and distance-triggered control, IP68-rated for multi-climate environments.

Core Guarantees

● Full-Process Quality Control: Ensures performance consistency from piezoelectric ceramic sintering to final aging tests.

● Customization Services: Adjustable frequency, cable length, and interface configurations for specialized needs.

● Worry-Free Support: Technical selection guidance, installation assistance, and lifetime maintenance response for rapid deployment.
