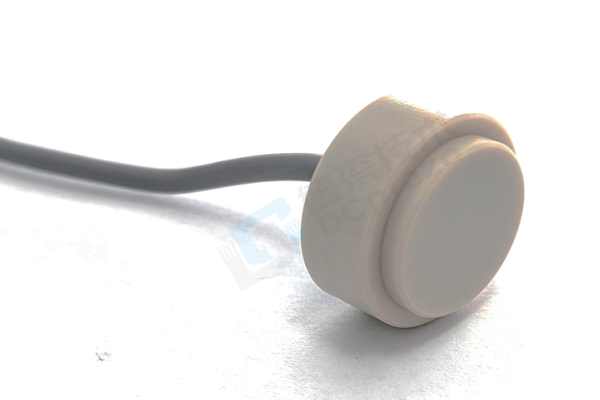

DC-SG-1MP

DC-SG-1MP

With high-frequency narrow beam focusing, high-resolution signal capture, and corrosion-resistant sealing, this transducer delivers precise solutions for urea monitoring, underwater exploration, and industrial liquid analysis, enabling efficient and stable long-term monitoring in complex liquid environments.

Structural Design

● Narrow Beam Focusing: 6.5°±1° ultra-narrow transmission beam angle concentrates energy for enhanced liquid concentration resolution and long-distance (6cm+) ranging accuracy.

● Corrosion-Resistant Sealed Housing: PEEK/PET plastic encapsulation withstands acids, alkalis, urea, and 2MPa high-pressure environments with IP68 protection.

● EMI-Resistant Lead Design: Dual-core shielded cable with internal EMI shielding suppresses underwater interference for clean signal transmission.

● Lightweight Integration: Weighs only 4g, miniaturized for submersible robots and portable detection systems.

Material Properties

● High-Corrosion Resistance Housing: PEEK/PET material offers mechanical strength and resistance to urea, fuels, and chemical immersion.

● High-Frequency Piezoelectric Ceramic: Static capacitance 1300pF (±15%), bandwidth >20% (@-6dB), optimized for efficient 1MHz signal transmission and rapid response.

● Low-Loss Acoustic Window: PEEK/PET window ensures high acoustic transparency, anti-contamination, and long-term signal consistency.

Core Advantages

● High Resolution & Signal Capture:

(1) First wave amplitude >1.8Vpp with superior tail oscillation suppression for precise urea concentration and impurity detection.

(2) Narrow beam angle minimizes environmental noise, improving underwater ranging and liquid flow measurement accuracy.

● Extreme Environmental Adaptability: Tolerates 2MPa pressure, 0°C–50°C water temperature fluctuations, and corrosive liquids for extended lifespan.

● Fast Dynamic Response: High-frequency signal and wide bandwidth enable real-time monitoring compatibility.

Typical Applications

● Urea Quality Monitoring: Real-time urea concentration detection in diesel SCR (Selective Catalytic Reduction) systems.

● Industrial Liquid Measurement: Flow monitoring in chemical pipelines, tank level measurement, and concentration analysis.

● Underwater Detection: Submersible robot navigation, seabed mapping, and deep-sea equipment monitoring.

● Scientific Research: Liquid property analysis in labs and parameter acquisition for microfluidic devices.

Core Guarantees

● Full-Process Quality Control: Ensures performance consistency from piezoelectric ceramic sintering to final aging tests.

● Customization Services: Adjustable frequency, cable length, and interface configurations for specialized requirements.

● Worry-Free Support: Technical consultation, installation guidance, and lifetime maintenance response for rapid deployment.
