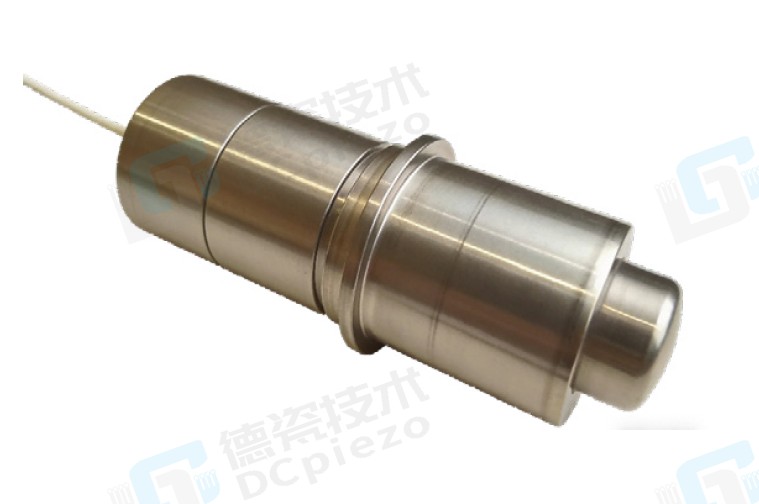

With its 65kHz operating frequency, 7kHz bandwidth (-6dB), and narrow 13° beam angle, the DC-SG-65KHz provides a highly accurate and reliable ultrasonic sensing solution for high-pressure, high-humidity scenarios such as oil & gas and chemical processes. It is particularly well-suited for high-pressure industrial flowmeters, pipeline gas flow monitoring, and liquid level detection systems.

1. Structural Design

●Extreme-Condition Dedicated Structure: All-titanium alloy housing, pressure rating of 10MPa, IP68 protection rating, suitable for long-term immersion or installation in high-pressure pipelines.

●Compact Flange Mounting: Threaded flange mounting method for easy integration with existing pipeline systems, providing reliable sealing and strong vibration resistance.

●High-Temperature Adapted Design: Operating temperature range -30°C to +280°C, matching petrochemical steam tracing or high-temperature process environments.

2. Material Properties

●High-Pressure Resistant Piezoelectric Ceramic: Static capacitance 3nF±20%, supporting drive voltage up to 1500Vpp, delivering high-energy acoustic waves with strong penetration.

●High-Performance Acoustic Matching: Sensitivity pairing > -57dB, ensuring transmit-receive consistency for paired use; beam angle 13°±2° (-3dB), good directivity, reducing crosstalk.

●Aging-Resistant Cable: Single-core shielded cable effectively suppresses electromagnetic interference, with a transmission distance up to 10m, suitable for long-distance signal acquisition.

3. Core Advantages

●Ultra-High Pressure Tolerance: 10MPa pressure-rated design allows direct use in high-pressure natural gas pipelines, water injection wells, and similar applications without additional pressure reduction devices.

●Wide-Temperature Stable Operation: Ultra-wide temperature range from -30°C to +280°C, suitable for various extreme conditions including high-temperature steam and low-temperature transport.

●Narrow Beam and High Sensitivity: 13° narrow beam angle combined with > -57dB high sensitivity ensures accurate capture of transit time differences even in complex flow fields, improving flow measurement accuracy.

●Long-Distance Transmission: Usable distance up to 10m, facilitating long-distance signal connections between central control rooms and field instruments.

4. Typical Applications

●Oil & Gas Pipeline Flow Metering: Used for non-contact ultrasonic flow measurement in high-pressure natural gas, crude oil, and refined product pipelines.

●High-Pressure Industrial Gas Flowmeters: Integrated into precision metering systems for industrial gases such as nitrogen, hydrogen, and compressed air.

●Chemical Process Metering: Suitable for process control and batch metering of high-temperature, corrosive chemical media.

●Liquid Level Detection: Used for level monitoring in high-pressure vessels, reactors, and storage tanks, particularly suitable for viscous or high-temperature liquids.

5. Usage and Warranty Instructions

●Drive Voltage Limitation: Recommended drive voltage ≤1500Vpp to avoid exceeding the piezoelectric element's tolerance limit. It is advisable to use a dedicated ultrasonic driving circuit.

●Paired Use: Recommended to order in pairs (transmitter + receiver). Factory sensitivity pairing ensures transit time measurement accuracy.

●Installation and Sealing: Ensure proper sealing between the threaded flange and pipeline interface during installation to prevent high-pressure leakage. The cable outlet should be protected against water and dust ingress.

●Temperature Shock Caution: Although the operating temperature range is wide, when experiencing rapid temperature changes (e.g., quick cooling from 280°C), gradual transition is recommended to prevent thermal stress damage.

●Customization Support: Custom versions with different frequencies (e.g., 40kHz, 125kHz), different pressure ratings, and housing materials (e.g., stainless steel, Hastelloy) are available. Please contact us for inquiries.
