闭环多层压电陶瓷叠堆

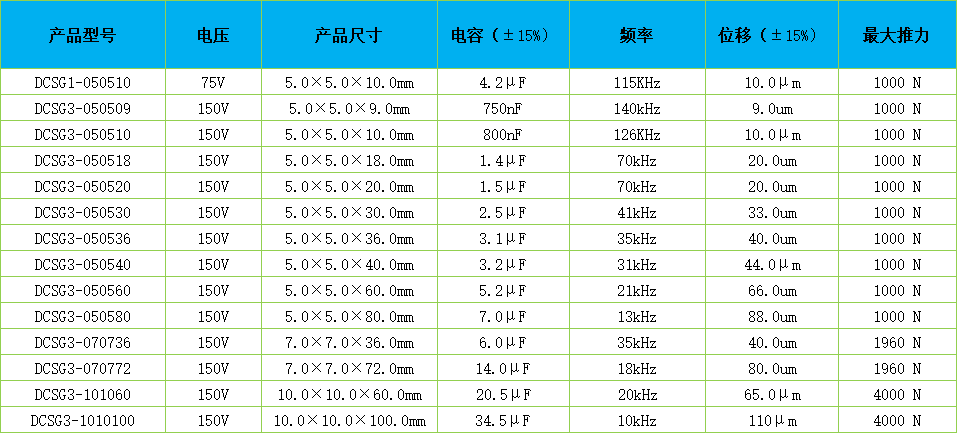

电驱动器都包含四个电阻应变片，它们以惠斯通电桥结构直接连接到压电驱动器。这些驱动器适用于闭环系统，系统可以监测并使用应变信号，以确定压电控制驱动电压。与开环配置相比，闭环配置能够加强工作过程中对驱动器位移的控制和掌握。而且，闭环配置还能补偿迟滞效应。

四个箔型应变片安装在密封驱动器的环氧树脂涂层上，引线焊接到应变电路的末端。两个应变片彼此相邻，沿着驱动器的一边粘着，另外两个应变片粘到对面。每对应变片中，一个为主动型应变片，一个为被动型应变片。主动型应变片针对驱动器的长度变化做出大响应。而被动型应变片则对驱动器的长度变化做出小的响应；它主要响应温度的变化，可以减小温度变化对应变测量的影响。

两个驱动器的引线都焊接到了驱动器的正极和负极。共烧压电驱动器由锆钛酸铅(PZT)层与电极层交替构成，然后烧结成一个整体结构。分立式堆栈压电驱动器通过环氧树脂与玻璃珠连接多个单独烧结的压电芯片而构成。这两种设计的其他差异包括接头与绝缘细节的不同。

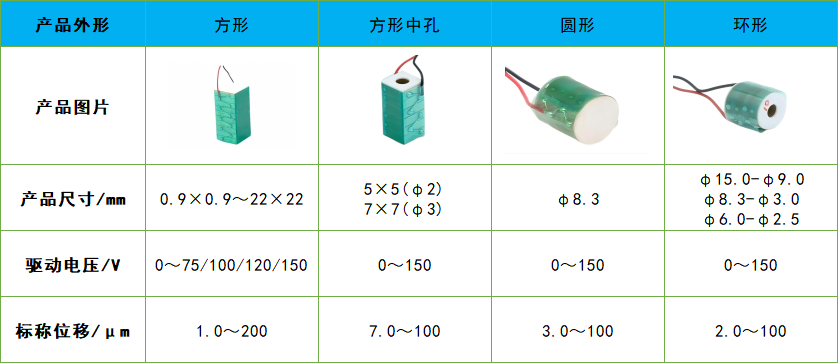

方形	电压	产品尺寸	电容（±15%）	频率	位移（±15%）	最大推力
DCS1-030318	75 V	3.0 × 3.0 × 18.8 mm	2.25 µF	65 kHz	18.0 µm	360 N
DCS1-030331	75 V	3.0 × 3.0 × 31.0 mm	3.75 µF	40 kHz	30.0 µm	360 N
DCS1-050510	75 V	5.0 × 5.0 × 10.5 mm	4.2 µF	115 kHz	11.2 µm	1000 N
DCS1-050518	75 V	5.0 × 5.0 × 18.0 mm	7.3 µF	65 kHz	19.6 µm	1000 N
DCS1-050523	75 V	5.0 × 5.0 × 23.0 mm	9.4 µF	55 kHz	25.2 µm	1000 N
DCS1-050539	75 V	5.0 × 5.0 × 39.8 mm	16.5 µF	30 kHz	44.8 µm	1000 N
DCS2-020210	100V	2.0 × 2.0 × 10.9 mm	240 nF	115 kHz	9.5 µm	160 N
DCS2-030310	100V	3.0 × 3.0 × 10.9 mm	620 nF	115 kHz	10.5 µm	360 N
DCS2-030320	100V	3.0 × 3.0 × 20.9 mm	1.25 µF	60 kHz	21.0 µm	360 N
DCS2-030331	100V	3.0 × 3.0 × 31.0 mm	1.85 µF	40 kHz	31.5 µm	360 N
DCS5-070736	120V	7.0 × 7.0 × 36.0 mm	7.2 µF	35 kHz	38.0 µm	1960 N
DCS3-020210	150V	2.0 × 2.0 × 10.9 mm	110 nF	115 kHz	9.5 µm	160 N
DCS3-252505	150V	2.5 × 2.5 × 5.0 mm	100 nF	250 kHz	5.2 µm	250 N
DCS3-252510	150V	2.5 × 2.5 × 10.0 mm	175 nF	130 kHz	9.2 µm	250 N
DCS3-252519	150V	2.5 × 2.5 × 19.4 mm	360 nF	68 kHz	19.0 µm	250 N
DCS3-030305	150V	3.0 × 3.0 × 5.0 mm	130 nF	265 kHz	4.8 µm	360 N
DCS3-030307	150V	3.0 × 3.0 × 7.0 mm	180 nF	192 kHz	6.8 µm	360 N
DCS3-030309	150V	3.0 × 3.0 × 9.0 mm	250 nF	140 kHz	9.5 µm	360 N
DCS3-030310	150V	3.0 × 3.0 × 10.0 mm	275 nF	132 kHz	11.0 µm	360 N
DCS3-030318	150V	3.0 × 3.0 × 18.8 mm	530 nF	65 kHz	19.8 µm	360 N
DCS3-030331	150V	3.0 × 3.0 × 31.0 mm	930 nF	40 kHz	33.0 µm	360 N
DCS3-050509	150V	5.0 × 5.0 × 9.0 mm	650 nF	140 kHz	9.5 µm	1000 N
DCS3-050510	150V	5.0 × 5.0 × 10.0 mm	800 nF	126 kHz	10.0 µm	1000 N
DCS3-050512	150V	5.0 × 5.0 × 12.0 mm	850nF	105 kHz	12.0µm	1000 N
DCS3-050518	150V	5.0 × 5.0 × 18.0 mm	1.5 µF	70 kHz	20.0 µm	1000 N
DCS3-050520	150V	5.0 × 5.0 × 20.0mm	1.6 µF	65 kHz	21.0 µm	1000 N
DCS3-050536	150V	5.0 × 5.0 × 36.0 mm	3.0 µF	34 kHz	40.0 µm	1000 N
DCS3-050538	150V	5.0 × 5.0 × 38.0 mm	3.3 µF	34 kHz	40.0 µm	1000 N
DCS3-050540	150V	5.0 × 5.0 × 40.0 mm	3.2µF	32 kHz	43.0 µm	1000 N
DCS3-050548	150V	5.0 × 5.0 × 48.0 mm	4.2 µF	26 kHz	50.0 µm	1000 N
DCS3-050550	150V	5.0 × 5.0 × 50.0 mm	4.1µF	25 kHz	55.0 µm	1000 N
DCS3-070709	150V	7.0 × 7.0 × 9.0 mm	1.4 µF	130 kHz	8.5 µm	1960 N
DCS3-070718	150V	7.0 × 7.0 × 18.0 mm	2.9 µF	70 kHz	19.0 µm	1960 N
DCS3-070720	150V	7.0 × 7.0 × 20.0 mm	3.2 µF	62 kHz	21.0 µm	1960 N
DCS3-070730	150V	7.0 × 7.0 × 30.0 mm	4.6 µF	42 kHz	32.0 µm	1960 N
DCS3-070736	150V	7.0 × 7.0 × 36.0 mm	6.0 µF	35 kHz	38.0 µm	1960 N
DCS3-070745	150V	7.0 × 7.0 × 45.0 mm	7.2 µF	27 kHz	50.0 µm	1960 N
DCS3-070750	150V	7.0 × 7.0 × 50.0 mm	8.5µF	24 kHz	55.0 µm	1960 N
DCS3-070790	150V	7.0 × 7.0 × 90.0 mm	15.5 µF	14 kHz	100.0 µm	1960 N
DCS3-101018	150V	10.0 × 10.0 × 18.0 mm	6.0 µF	65 kHz	20.0 µm	4000 N
DCS3-101036	150V	10.0 × 10.0 × 36.0 mm	13.0 µF	34 kHz	40.0 µm	4000 N
DCS3-101045	150V	10.0 × 10.0 × 45.0 mm	15.0 µF	15 kHz	50.0 µm	4000 N
DCS1-030332C1	75 V	3.0 × 3.0 × 32.2 mm	3.75 µF	40 kHz	30.0 µm	360 N
DCS1-050512C1	75 V	5.0 × 5.0 × 12.6 mm	4.2 µF	115 kHz	11.2 µm	1000 N
DCS1-050520C1	75 V	5.0 × 5.0 × 20.1 mm	7.3 µF	65 kHz	19.6 µm	1000 N
DCS1-050525C1	75 V	5.0 × 5.0 × 25.1 mm	9.4 µF	55 kHz	25.2 µm	1000 N
DCS1-050541C1	75 V	5.0 × 5.0 × 41.9 mm	16.5 µF	30 kHz	44.8 µm	1000 N
DCS2-020211C1	100V	2.0 × 2.0 × 11.5 mm	240 nF	115 kHz	9.5 µm	160 N
DCS2-030312C1	100V	3.0 × 3.0 × 12.0 mm	620 nF	115 kHz	10.5 µm	360 N
DCS2-030322C1	100V	3.0 × 3.0 × 22.1 mm	1250 nF	60 kHz	21.0 µm	360 N
DCS2-030332C1	100V	3.0 × 3.0 × 32.2 mm	1850 nF	40 kHz	31.5 µm	360 N
DCS3-020211C1	150V	2.0 × 2.0 × 11.5 mm	110 nF	115 kHz	9.5 µm	160 N
DCS3-252506C1	150V	2.5 × 2.5 × 6.1 mm	100 nF	250 kHz	5.2 µm	250 N
DCS3-252511C1	150V	2.5 × 2.5 × 11.0 mm	175 nF	125 kHz	9.2 µm	250 N
DCS3-030310C1	150V	3.0 × 3.0 × 10.0 mm	360 nF	140 kHz	8.8 µm	360 N
DCS3-030320C1	150V	3.0 × 3.0 × 20.0 mm	550 nF	65 kHz	19.8 µm	360 N
DCS3-030332C1	150V	3.0 × 3.0 × 32.2 mm	930 nF	40 kHz	33.0 µm	360 N
DCS3-050511C1	150V	5.0 × 5.0 × 11.0 mm	750 nF	140 kHz	9.5 µm	1000 N
DCS3-050520C1	150V	5.0 × 5.0 × 20.1 mm	1.5 µF	70 kHz	20.0 µm	1000 N
DCS3-050538C1	150V	5.0 × 5.0 × 38.1 mm	3.2 µF	34 kHz	40.0 µm	1000 N
DCS3-050552C1	150V	5.0 × 5.0 × 52.2 mm	4.5µF	25 kHz	55.0 µm	1000 N
DCS3-070712C1	150V	7.0 × 7.0 × 12.0 mm	1.4 µF	130 kHz	8.5 µm	1960 N
DCS3-070721C1	150V	7.0 × 7.0 × 21.1 mm	3.0 µF	70 kHz	19.0 µm	1960 N
DCS3-070739C1	150V	7.0 × 7.0 × 39.1 mm	6.0 µF	35 kHz	38.0 µm	1960 N
DCS3-070748C1	150V	7.0 × 7.0 × 48.1 mm	9.0 µF	27 kHz	50.0 µm	1960 N
DCS3-070793C1	150V	7.0 × 7.0 × 93.5 mm	16.0 µF	14 kHz	100.0 µm	1960 N
DCS3-101022C1	150V	10.0 × 10.0 × 22.6 mm	6.0 µF	65 kHz	20.0 µm	4000 N
DCS3-101040C1	150V	10.0 × 10.0 × 40.7 mm	13.0 µF	34 kHz	40.0 µm	4000 N
DCS3-101049C1	150V	10.0 × 10.0 × 49.7 mm	15.0 µF	27 kHz	50.0 µm	4000 N
DCS3-252511C1	150V	2.5 × 2.5 × 11.0 mm	175 nF	125 kHz	9.2 µm	250 N

命名规则：

A	B	Bimoroph	压电双晶片	RD	Roung Chips	圆形压电片
	BH	Bimoroph With Holder	带基座压电双晶片	RG	Ring Chips	环形压电片
	C	Chips	方形压电片	S	Stack	方形压电叠堆
	CH	Chips With Hole	方形带中孔单片	SH	Stack With Hole	方形带中孔压电叠堆
	CS	Shear Chips	压电剪切片	SS	Shear Stack	压电剪切叠堆
	F	Stacks in Flexure	结构放大式压电叠堆	SRD	Round Stack	圆形压电叠堆
	SG	Stacks With Strain Gauges	带应变片压电叠堆	SRG	Ring Stack	环形压电叠堆
	CF	Co-Fired Piezoelectric	共烧压电陶瓷
	B	Bimoroph	压电双晶片	RD	Roung Chips	圆形压电片
	BH	Bimoroph With Holder	带基座压电双晶片	RG	Ring Chips	环形压电片
	C	Chips	方形压电片	S	Stack	方形压电叠堆
	CH	Chips With Hole	方形带中孔单片	SH	Stack With Hole	方形带中孔压电叠堆
	CS	Shear Chips	压电剪切片	SS	Shear Stack	压电剪切叠堆
	F	Stacks in Flexure	结构放大式压电叠堆	SRD	Round Stack	圆形压电叠堆
	SG	Stacks With Strain Gauges	带应变片压电叠堆	SRG	Ring Stack	环形压电叠堆
	CF	Co-Fired Piezoelectric	共烧压电陶瓷
B	驱动电压	1	-30 ~ 75V
		2	-30 ~ 100V
		3	-30 ~ 150V
		4	-30 ~ 200V
		5	-30 ~ 120V
C	电极面尺寸	外径尺寸
D	侧面尺寸	内径尺寸
E	厚度尺寸
F	端面处理	C1	一端氧化铝半球端帽	C3	氧化铝平面端帽	产品默认两端氧化铝平面
F	端面处理	C2	两端氧化铝半球端帽	C4	PZT不锈钢端帽	产品默认两端氧化铝平面

广东德瓷技术有限公司_压电陶瓷专家多层压电陶瓷叠堆.pdf

方形	电压	产品尺寸	电容（±15%）	频率	位移（±15%）	最大推力
DCS1-030318	75 V	3.0 × 3.0 × 18.8 mm	2.25 µF	65 kHz	18.0 µm	360 N
DCS1-030331	75 V	3.0 × 3.0 × 31.0 mm	3.75 µF	40 kHz	30.0 µm	360 N
DCS1-050510	75 V	5.0 × 5.0 × 10.5 mm	4.2 µF	115 kHz	11.2 µm	1000 N
DCS1-050518	75 V	5.0 × 5.0 × 18.0 mm	7.3 µF	65 kHz	19.6 µm	1000 N
DCS1-050523	75 V	5.0 × 5.0 × 23.0 mm	9.4 µF	55 kHz	25.2 µm	1000 N
DCS1-050539	75 V	5.0 × 5.0 × 39.8 mm	16.5 µF	30 kHz	44.8 µm	1000 N
DCS2-020210	100V	2.0 × 2.0 × 10.9 mm	240 nF	115 kHz	9.5 µm	160 N
DCS2-030310	100V	3.0 × 3.0 × 10.9 mm	620 nF	115 kHz	10.5 µm	360 N
DCS2-030320	100V	3.0 × 3.0 × 20.9 mm	1.25 µF	60 kHz	21.0 µm	360 N
DCS2-030331	100V	3.0 × 3.0 × 31.0 mm	1.85 µF	40 kHz	31.5 µm	360 N
DCS5-070736	120V	7.0 × 7.0 × 36.0 mm	7.2 µF	35 kHz	38.0 µm	1960 N
DCS3-020210	150V	2.0 × 2.0 × 10.9 mm	110 nF	115 kHz	9.5 µm	160 N
DCS3-252505	150V	2.5 × 2.5 × 5.0 mm	100 nF	250 kHz	5.2 µm	250 N
DCS3-252510	150V	2.5 × 2.5 × 10.0 mm	175 nF	130 kHz	9.2 µm	250 N
DCS3-252519	150V	2.5 × 2.5 × 19.4 mm	360 nF	68 kHz	19.0 µm	250 N
DCS3-030305	150V	3.0 × 3.0 × 5.0 mm	130 nF	265 kHz	4.8 µm	360 N
DCS3-030307	150V	3.0 × 3.0 × 7.0 mm	180 nF	192 kHz	6.8 µm	360 N
DCS3-030309	150V	3.0 × 3.0 × 9.0 mm	250 nF	140 kHz	9.5 µm	360 N
DCS3-030310	150V	3.0 × 3.0 × 10.0 mm	275 nF	132 kHz	11.0 µm	360 N
DCS3-030318	150V	3.0 × 3.0 × 18.8 mm	530 nF	65 kHz	19.8 µm	360 N
DCS3-030331	150V	3.0 × 3.0 × 31.0 mm	930 nF	40 kHz	33.0 µm	360 N
DCS3-050509	150V	5.0 × 5.0 × 9.0 mm	650 nF	140 kHz	9.5 µm	1000 N
DCS3-050510	150V	5.0 × 5.0 × 10.0 mm	800 nF	126 kHz	10.0 µm	1000 N
DCS3-050512	150V	5.0 × 5.0 × 12.0 mm	850nF	105 kHz	12.0µm	1000 N
DCS3-050518	150V	5.0 × 5.0 × 18.0 mm	1.5 µF	70 kHz	20.0 µm	1000 N
DCS3-050520	150V	5.0 × 5.0 × 20.0mm	1.6 µF	65 kHz	21.0 µm	1000 N
DCS3-050536	150V	5.0 × 5.0 × 36.0 mm	3.0 µF	34 kHz	40.0 µm	1000 N
DCS3-050538	150V	5.0 × 5.0 × 38.0 mm	3.3 µF	34 kHz	40.0 µm	1000 N
DCS3-050540	150V	5.0 × 5.0 × 40.0 mm	3.2µF	32 kHz	43.0 µm	1000 N
DCS3-050548	150V	5.0 × 5.0 × 48.0 mm	4.2 µF	26 kHz	50.0 µm	1000 N
DCS3-050550	150V	5.0 × 5.0 × 50.0 mm	4.1µF	25 kHz	55.0 µm	1000 N
DCS3-070709	150V	7.0 × 7.0 × 9.0 mm	1.4 µF	130 kHz	8.5 µm	1960 N
DCS3-070718	150V	7.0 × 7.0 × 18.0 mm	2.9 µF	70 kHz	19.0 µm	1960 N
DCS3-070720	150V	7.0 × 7.0 × 20.0 mm	3.2 µF	62 kHz	21.0 µm	1960 N
DCS3-070730	150V	7.0 × 7.0 × 30.0 mm	4.6 µF	42 kHz	32.0 µm	1960 N
DCS3-070736	150V	7.0 × 7.0 × 36.0 mm	6.0 µF	35 kHz	38.0 µm	1960 N
DCS3-070745	150V	7.0 × 7.0 × 45.0 mm	7.2 µF	27 kHz	50.0 µm	1960 N
DCS3-070750	150V	7.0 × 7.0 × 50.0 mm	8.5µF	24 kHz	55.0 µm	1960 N
DCS3-070790	150V	7.0 × 7.0 × 90.0 mm	15.5 µF	14 kHz	100.0 µm	1960 N
DCS3-101018	150V	10.0 × 10.0 × 18.0 mm	6.0 µF	65 kHz	20.0 µm	4000 N
DCS3-101036	150V	10.0 × 10.0 × 36.0 mm	13.0 µF	34 kHz	40.0 µm	4000 N
DCS3-101045	150V	10.0 × 10.0 × 45.0 mm	15.0 µF	15 kHz	50.0 µm	4000 N
DCS1-030332C1	75 V	3.0 × 3.0 × 32.2 mm	3.75 µF	40 kHz	30.0 µm	360 N
DCS1-050512C1	75 V	5.0 × 5.0 × 12.6 mm	4.2 µF	115 kHz	11.2 µm	1000 N
DCS1-050520C1	75 V	5.0 × 5.0 × 20.1 mm	7.3 µF	65 kHz	19.6 µm	1000 N
DCS1-050525C1	75 V	5.0 × 5.0 × 25.1 mm	9.4 µF	55 kHz	25.2 µm	1000 N
DCS1-050541C1	75 V	5.0 × 5.0 × 41.9 mm	16.5 µF	30 kHz	44.8 µm	1000 N
DCS2-020211C1	100V	2.0 × 2.0 × 11.5 mm	240 nF	115 kHz	9.5 µm	160 N
DCS2-030312C1	100V	3.0 × 3.0 × 12.0 mm	620 nF	115 kHz	10.5 µm	360 N
DCS2-030322C1	100V	3.0 × 3.0 × 22.1 mm	1250 nF	60 kHz	21.0 µm	360 N
DCS2-030332C1	100V	3.0 × 3.0 × 32.2 mm	1850 nF	40 kHz	31.5 µm	360 N
DCS3-020211C1	150V	2.0 × 2.0 × 11.5 mm	110 nF	115 kHz	9.5 µm	160 N
DCS3-252506C1	150V	2.5 × 2.5 × 6.1 mm	100 nF	250 kHz	5.2 µm	250 N
DCS3-252511C1	150V	2.5 × 2.5 × 11.0 mm	175 nF	125 kHz	9.2 µm	250 N
DCS3-030310C1	150V	3.0 × 3.0 × 10.0 mm	360 nF	140 kHz	8.8 µm	360 N
DCS3-030320C1	150V	3.0 × 3.0 × 20.0 mm	550 nF	65 kHz	19.8 µm	360 N
DCS3-030332C1	150V	3.0 × 3.0 × 32.2 mm	930 nF	40 kHz	33.0 µm	360 N
DCS3-050511C1	150V	5.0 × 5.0 × 11.0 mm	750 nF	140 kHz	9.5 µm	1000 N
DCS3-050520C1	150V	5.0 × 5.0 × 20.1 mm	1.5 µF	70 kHz	20.0 µm	1000 N
DCS3-050538C1	150V	5.0 × 5.0 × 38.1 mm	3.2 µF	34 kHz	40.0 µm	1000 N
DCS3-050552C1	150V	5.0 × 5.0 × 52.2 mm	4.5µF	25 kHz	55.0 µm	1000 N
DCS3-070712C1	150V	7.0 × 7.0 × 12.0 mm	1.4 µF	130 kHz	8.5 µm	1960 N
DCS3-070721C1	150V	7.0 × 7.0 × 21.1 mm	3.0 µF	70 kHz	19.0 µm	1960 N
DCS3-070739C1	150V	7.0 × 7.0 × 39.1 mm	6.0 µF	35 kHz	38.0 µm	1960 N
DCS3-070748C1	150V	7.0 × 7.0 × 48.1 mm	9.0 µF	27 kHz	50.0 µm	1960 N
DCS3-070793C1	150V	7.0 × 7.0 × 93.5 mm	16.0 µF	14 kHz	100.0 µm	1960 N
DCS3-101022C1	150V	10.0 × 10.0 × 22.6 mm	6.0 µF	65 kHz	20.0 µm	4000 N
DCS3-101040C1	150V	10.0 × 10.0 × 40.7 mm	13.0 µF	34 kHz	40.0 µm	4000 N
DCS3-101049C1	150V	10.0 × 10.0 × 49.7 mm	15.0 µF	27 kHz	50.0 µm	4000 N
DCS3-252511C1	150V	2.5 × 2.5 × 11.0 mm	175 nF	125 kHz	9.2 µm	250 N
